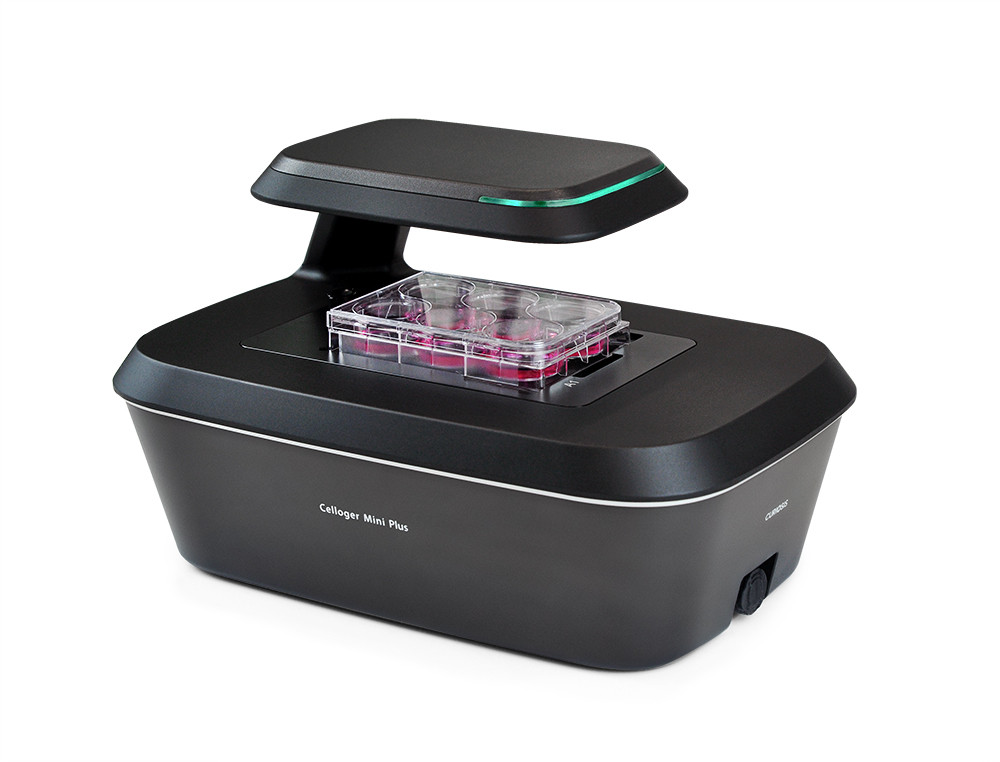

Celloger® Mini Plus is an automated live cell imaging system with advanced fluorescence and bright-field microscopy, autofocusing, and real-time multi-position imaging technology. It provides essential tools for acquiring high-quality images and obtaining accurate research results. This versatile and user-friendly system supports a wide range of cell-based research and applications. Expand your cell discoveries with Celloger® Mini Plus and accelerate your research.

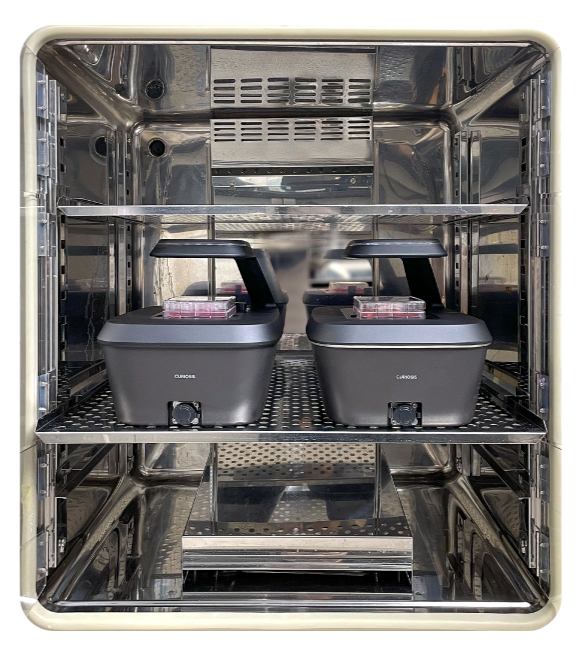

Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Mini Plus, you can easily monitor live cells inside the incubator for a long time without disturbing the environment suitable for cell culture.

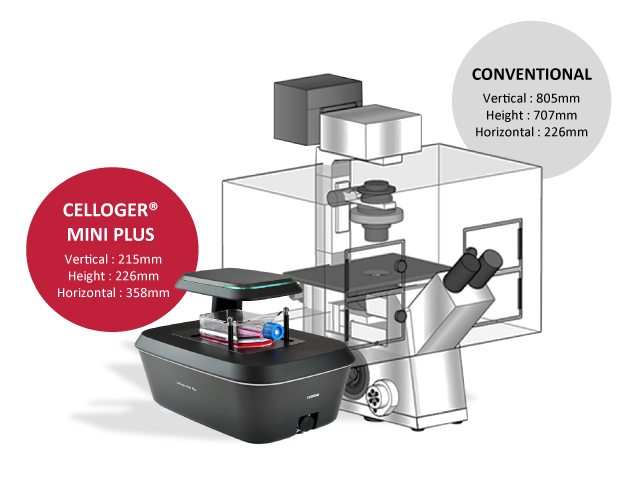

Celloger® Mini Plus is compact in size with 226(h) x 358(l) x 215(w)mm where several Celloger® Mini Plus systems can fit into a standard CO2 incubator. Since the system weighs about 5kg, it can be easily carried in and out of the incubator during the experiment.

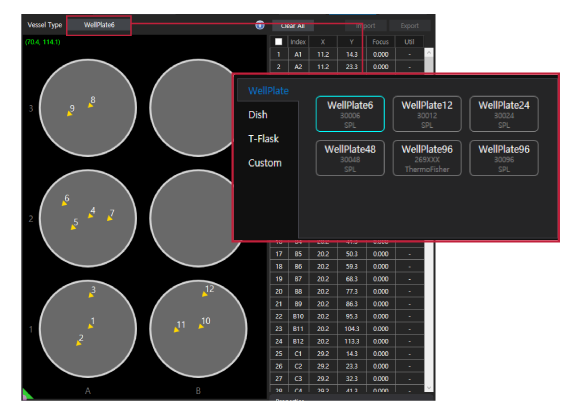

Using the motorized camera that travels 117mm x 77mm, x and y axis respectively, multiple points within the travel range can be captured following the schedule (intervals, cycles, total time) set by the researcher.

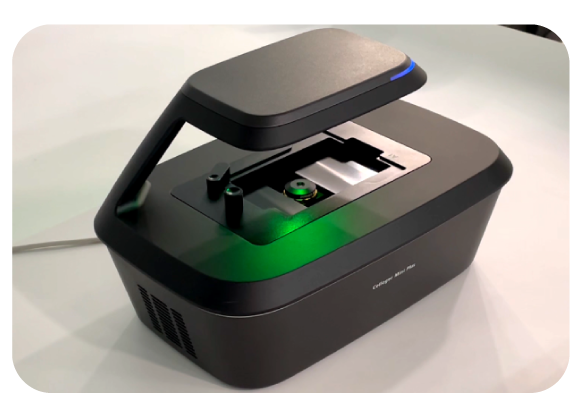

Celloger® Mini Plus doesn’t have a moveable stage but instead, the camera inside the system moves to capture the images of cell in multiple positions (refer to the video above). Since the vessel and cell sample are in a steady state, this provides a stable environment for the cells to grow.

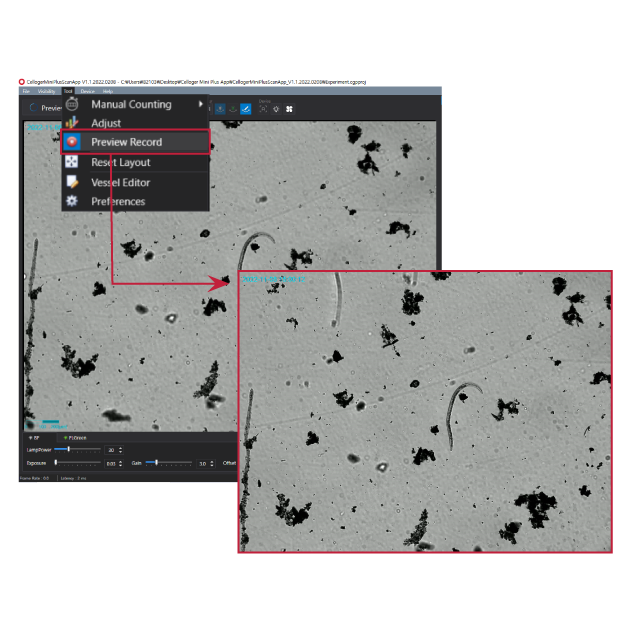

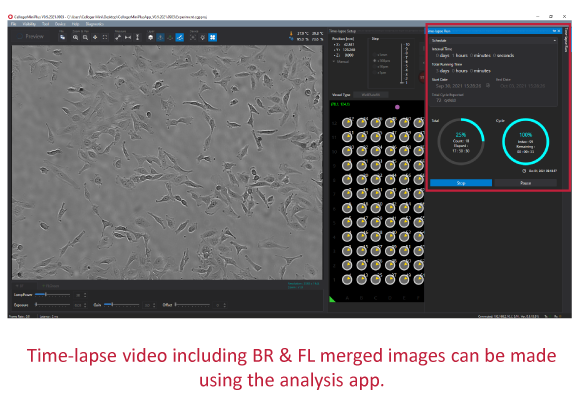

Images captured according to set schedule can be made into videos in simple clicks.

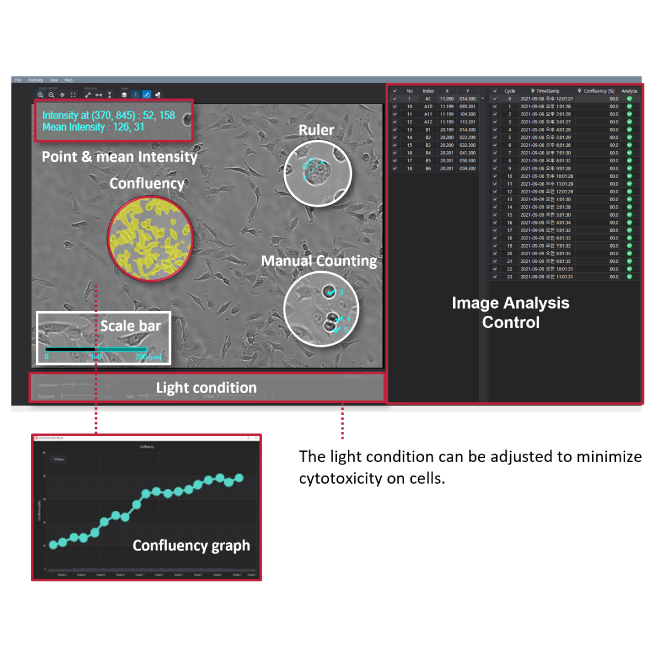

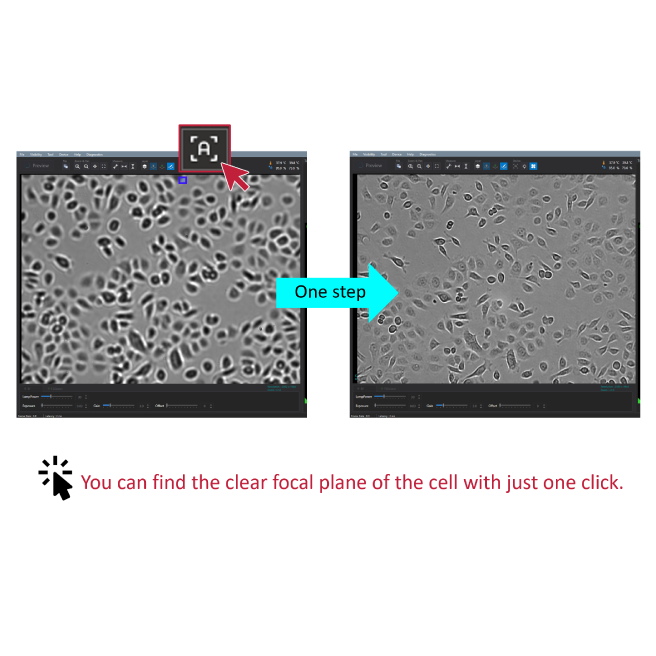

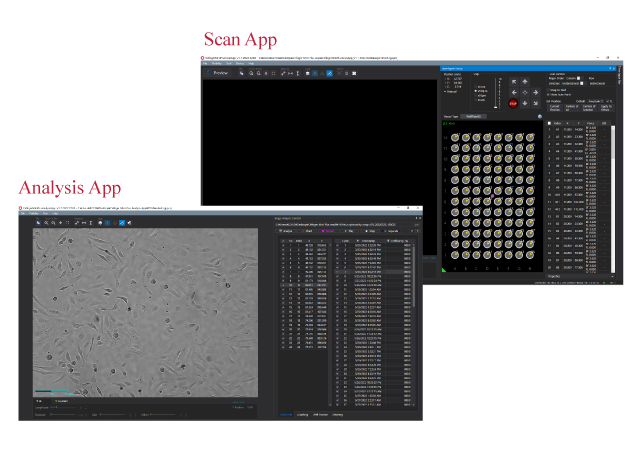

User-friendly functions
Celloger Mini Plus – Automated Live Cell Imaging System
| Dimension | 226 x 358 x 215 mm |
| Weight | 5.6kg / 12.3lb |
| Objective Lens | 4X / 10X |
| Field of view | 2X (2.53 × 1.90 mm) / 4X (1.19 x 0.90 mm) / 10X (0.57 x 0.43 mm) |
| Imaging modes | Brightfield, Fluorescence(Green / Red) |
| Fluorescence | Green: Excitation (470/40x) / Emission (510lp) |
| Red: Excitation (525/30x) / Emission (570lp) | |
| Light source | LED |
| Camera | 5MP CMOS |
| Stage | Motorized XYZ |
| Imaging positions | Multiple |
| File export format | TIFF, AVI (JPEG, PNG) |
| Culture vessels | Flask, dish, well plate, slide |
| Operating environment | 10~40℃, 20~95% humidity |
| Power requirements | 100-240V, ~50/60Hz |
| Documents & Links for Celloger® Mini Plus for Live Cell Imaging | |
| Flyer | Celloger® Mini Plus for Live Cell Imaging Flyer |
