Benchtop digital microscope for live cell imaging
Celloger® Nano is a benchtop digital microscope equipped with a wireless connection, enabling you to check the state of your cells in real-time from any location within your laboratory. With all the necessary functions to check the cells, you can quickly assess the condition of your cells.
Expand your cell-based research with Celloger® Nano, a benchtop digital microscope for live cell imaging.

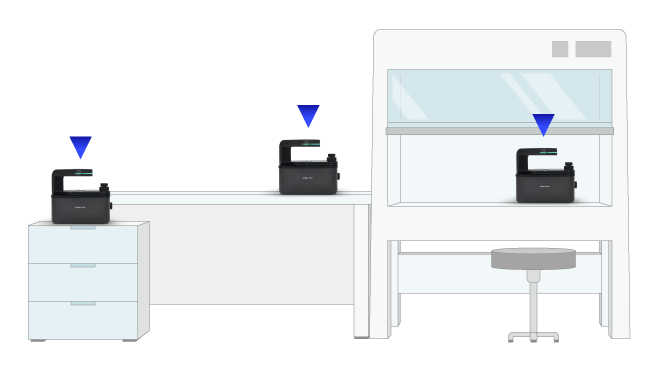

Celloger® Nano is a system perfectly suitable for confirming the conditions of cells in various locations depending on the researcher's experimental needs. It enables quick and efficient inspection of cells, allowing researchers to rapidly identify potential issues in their samples.

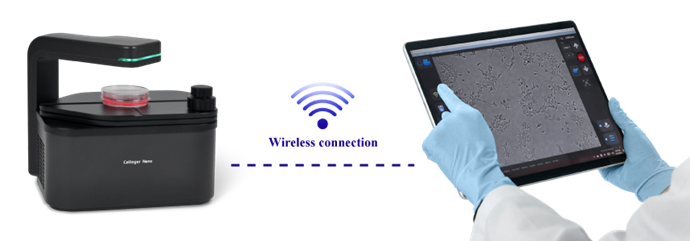

The wireless connection enables easy data transfer, allowing you to check your cells without space constraints. It provides software optimized for laptops and tablets, ensuring a seamless user experience.
Celloger® Nano can be easily installed without a complicated connection process, saving you time.

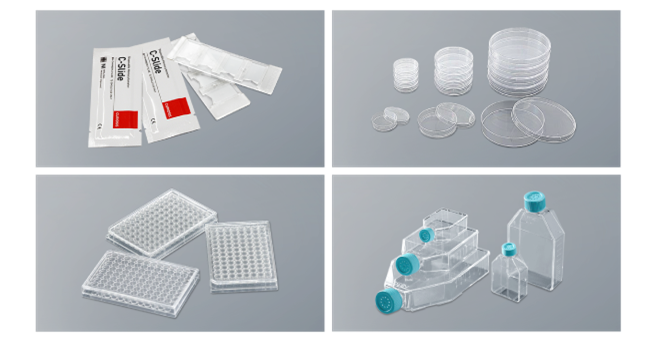

Different kinds of vessels can be used in Celloger® Nano using its wide stage that gives enough space for large labware placement.

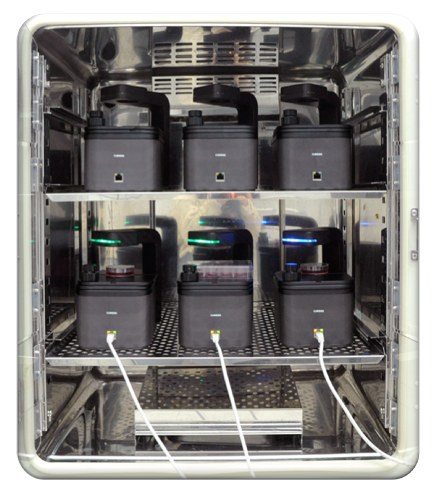

Celloger® Nano is a very compact system with a size almost equivalent to half of A4 paper. Compared to other products, several Celloger® Nano systems can fit into a standard CO₂ incubator.
Maintaining the performance of a device working in a hot and humid environment is very challenging. With Celloger® Nano, it is equipped with a fan that minimizes risk factors such as preventing moisture from forming and making it easier for maintenance.

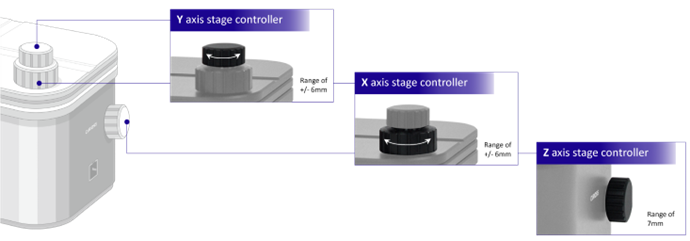

Precise stage controller

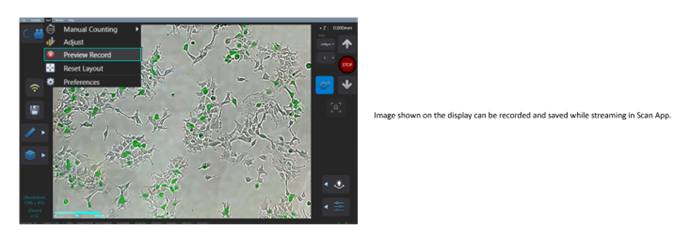

Preview record
Celloger® Nano – Automated Live Cell Imaging System
| Dimension | 226 x 358 x 215 mm |
| Weight | 5.6kg / 12.3lb |
| Objective Lens | 4X / 10X |
| Field of view | 2X (2.53 × 1.90 mm) / 4X (1.19 x 0.90 mm) / 10X (0.57 x 0.43 mm) |
| Imaging modes | Brightfield, Fluorescence(Green / Red) |
| Fluorescence | Green: Excitation (470/40x) / Emission (510lp) |
| Red: Excitation (525/30x) / Emission (570lp) | |
| Light source | LED |
| Camera | 5MP CMOS |
| Stage | Motorized XYZ |
| Imaging positions | Multiple |
| File export format | TIFF, AVI (JPEG, PNG) |
| Culture vessels | Flask, dish, well plate, slide |
| Operating environment | 10~40℃, 20~95% humidity |
| Power requirements | 100-240V, ~50/60Hz |
| Documents & Links for Celloger® Nano for Live Cell Imaging | |
| Flyer | Celloger® Nano for Live Cell Imaging Flyer |
| Flyer | Celloger® Series Brochure |
| Documents & Links for Celloger® Nano for Live Cell Imaging | |
| Flyer | Celloger® Nano for Live Cell Imaging Flyer |
| Flyer | Celloger® Series Brochure |
