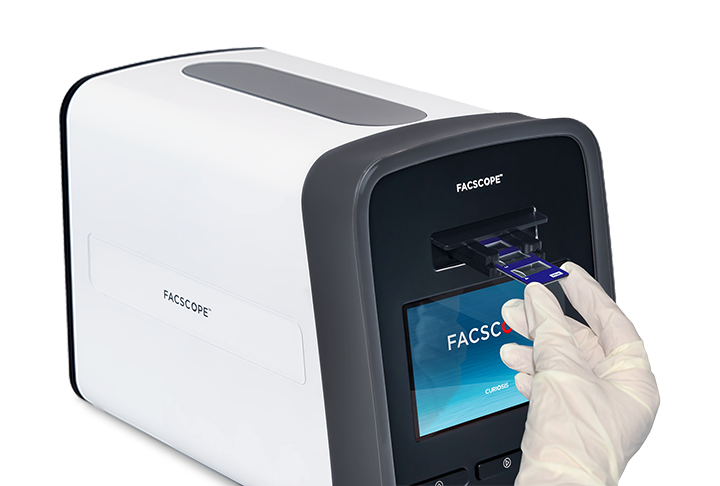

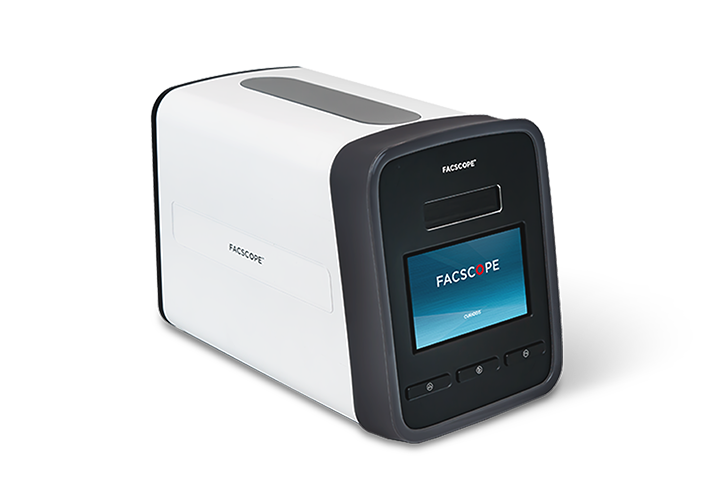

FACSCOPE® B is an automatic stand-alone cell counting system based on a bright-field microscopy.
FACSCOPE® B overcomes inconvenience associated with conventional hemocytometer by providing features such as autofocusing, customized presets, various counting modes, and user-friendly software.

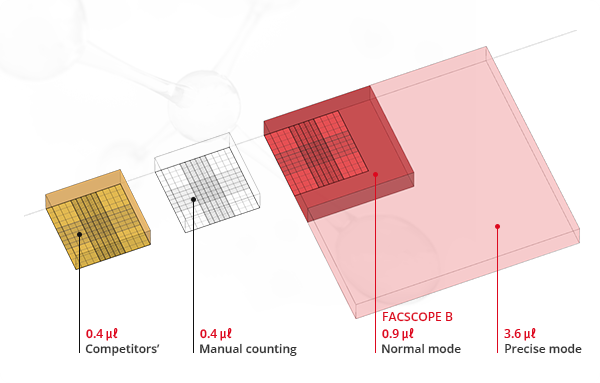

FACSCOPE B analyzes larger counting volume than hemocytometer and any other cell counters, therefore acquires more reliable and meaningful results.
The algorithm applied to FACSCOPE B finds the multiple focal planes and automatically selects the best and clearest focal plane.
The automatic focusing of FACSCOPE B eliminates variables that can cause human errors and enables users to obtain accurate results.
Advanced detection algorithm
The advanced recognition algorithm of FACSCOPE B provides users with the opportunity to observe various cells accurately. Irregular cells and aggregated cells can be clearly identified, as well as live and dead cells for various cell-based studies.

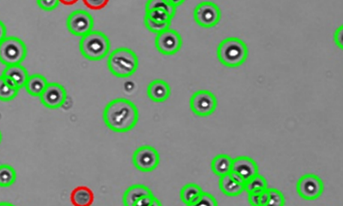

- Irregular Cell -

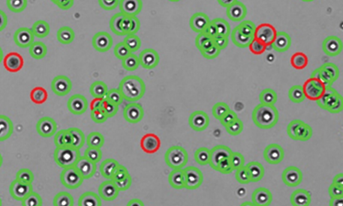

- Aggregated Cell -

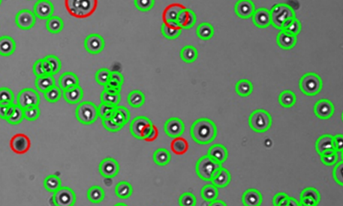

- Live / Dead Cell (viability) -

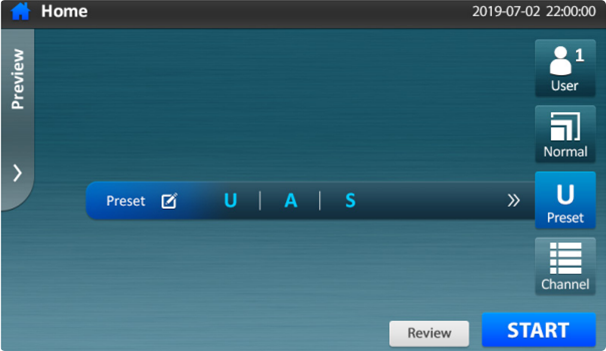

Presets
Selective Preset
U(Universal)To check general size and shape of cells
A(Aggregated)To count non-circular or variant shape of cells
S(Small)To test small size of cells
Customized Preset
Customized preset Available to create up to 15 cases as users
Count mode
1
QUICK MODE1 IMAGE
2
NORMAL MODE6 IMAGES (DEFAULT)
3
PRECISE MODE24 IMAGES
Facscope ®B – How to use
| Dimension | 163 × 293 × 216 mm |
| Weight | 5.0kg / 11.0lb |
| Objective Lens | 4X |
| Imaging modes | Bright field |
| Light source | LED |
| Camera | 5MP CMOS |
| Measuring concentration range | 1 x 10⁴ ~ 1 x 10⁷ cells/mL |
| Detectable cell diameter | 5 ~ 60µm |
| Measuring speed* | Quick mode: ≈ 20s per test |
| Normal mode: ≈ 30s per test | |
| Precise mode: ≈ 100s per test | |
| Counting area | Quick mode: ≈ 0.15 µL |
| Normal mode: ≈ 0.9 µL | |
| Precise mode: ≈ 3.6 µL |
| Documents & Links for Facscope® B Automatic Cell Counting System | |
| Flyer | Facscope® B Automatic Cell Counting System Flyer |
| Documents & Links for Facscope® B Automatic Cell Counting System | |
| Flyer | Facscope® B Automatic Cell Counting System Flyer |
